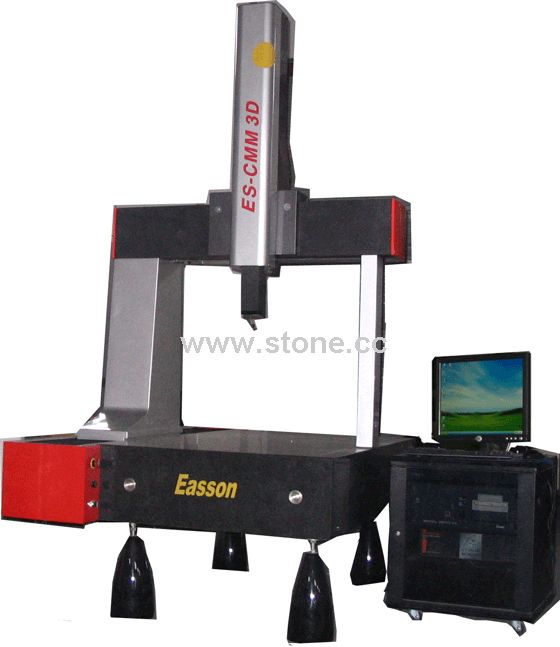

3 Coordinates Measuring Machine (ES-CMM )

• Place of Origin:

   China

• Type:

  Quarrying and Earthmoving Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1282269

• Place of Origin:

  China
• ES-CMM automatic (CNC) technical date:
  Model              ES-CMM 1086       ES-CMM 1218      ES-CMM 1521
  X axis travel       800mm             1000mm            1200mm
  Y axis travel       1000mm            1200mm            1500mm
  Z axis travel       600mm             800mm             1000mm

  Structure type: Adjustable bridge-type
  Transmission type: DC servomotor system / preloaded high precision pneumatic bearing.
  Length measuring system: RENISHAW open-type grid scale, resolution 0.5μm (option: 0.1μm)
  Worktable: High density granite worktable (00 Grade).
  Working ambient: Temperature(20+-2)C, humidity 55%-65%, gradient of temperature 1ºC/m, temperature change1ºC/h
  Pneumatic pressure: 0.4MPa—0.5MPa
  Air flow: 100 L/min--120 L/min.
  Dimension: 2.0m*1.5m*2.7m, 2.3m*1.8m*3.0m, 2.6m*2.1m*3.3m
  Load bearing: 1000kg
  Weight: 2000kg 2200kg 2500kg

  ES-CMM(manual) Technical data:
  Travel range: 500mm*600mm*400mm
  Resolution: 0.5μm
  Working ambient: Temperature(20+-2)ºC, humidity 55%-65%
  Pneumatic pressure: 0.4Mpa-0.5NPa
  Air flow: 100L/min-120L/min
  Dimension: 1.2m*1.4m*2.2m
  Load bearing: 500Kg
  Weight: 850Kg

  ES-CMM(manual) Probe Measuring System:
  Control system: CMM-Manager(American IQ)
  Working mode: Manual
  Measuring System: RENISHAW(England) Mh20i+TP20
  3D detection accuracy: (E): (3+L/300)μm
